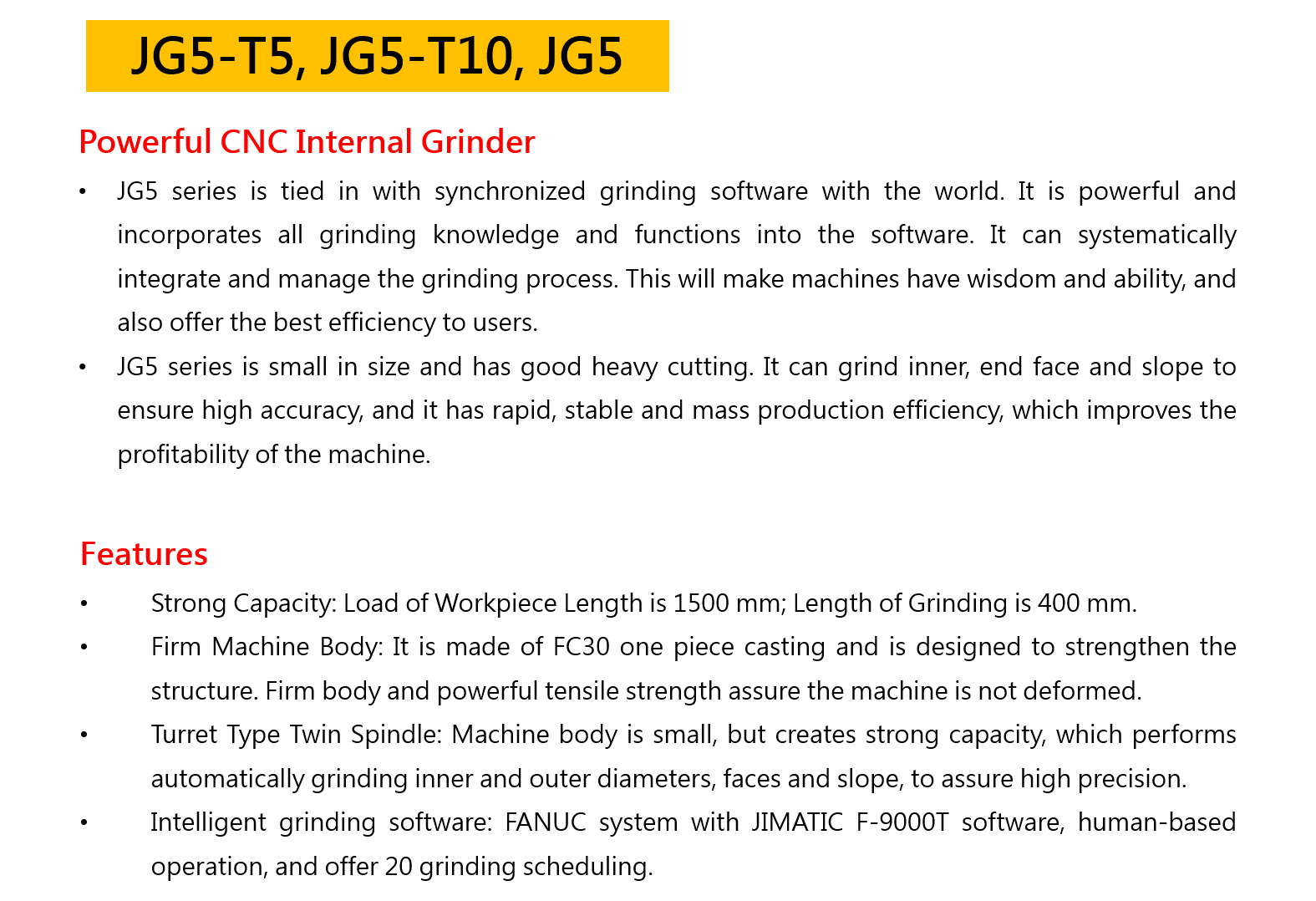

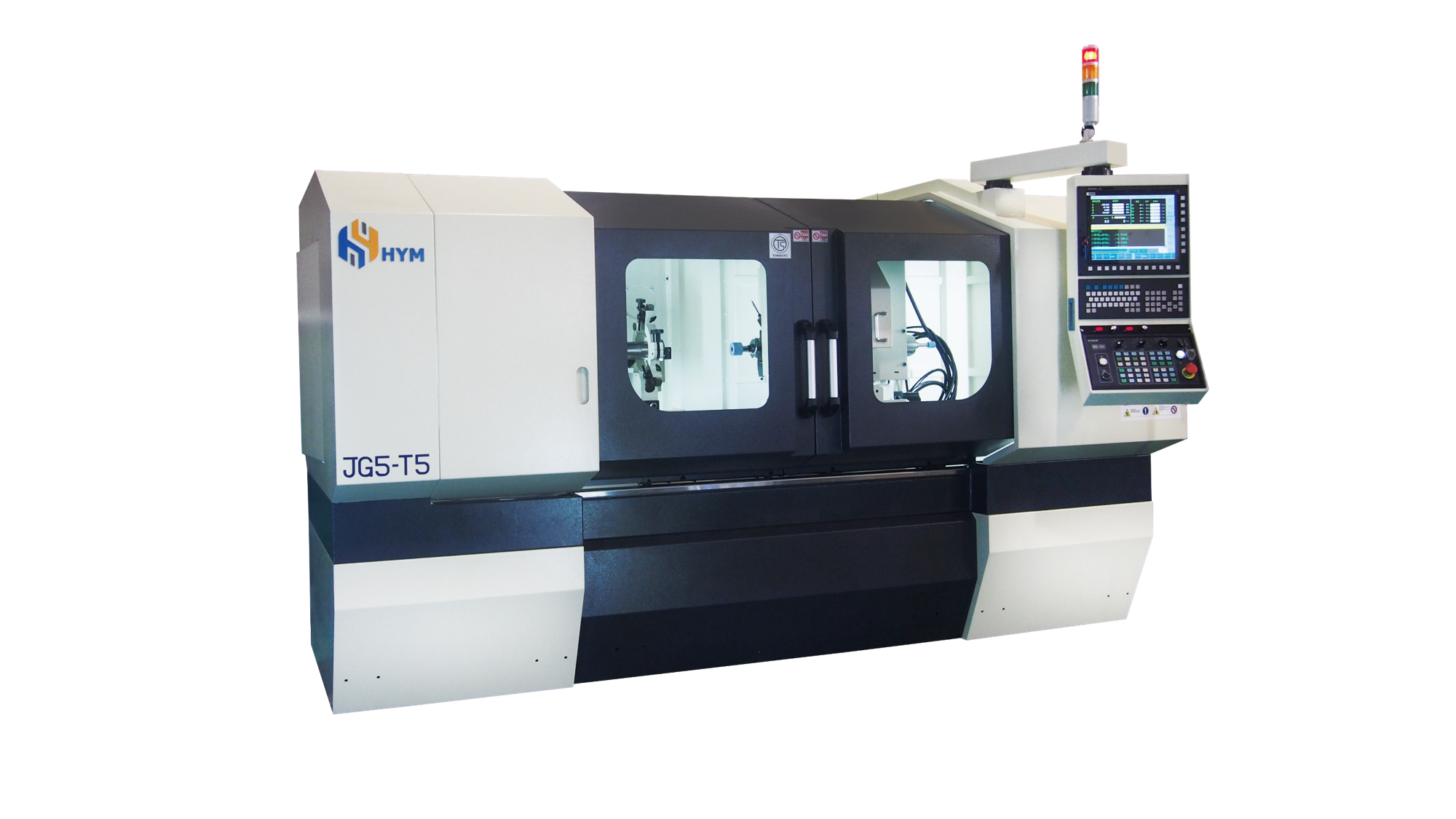

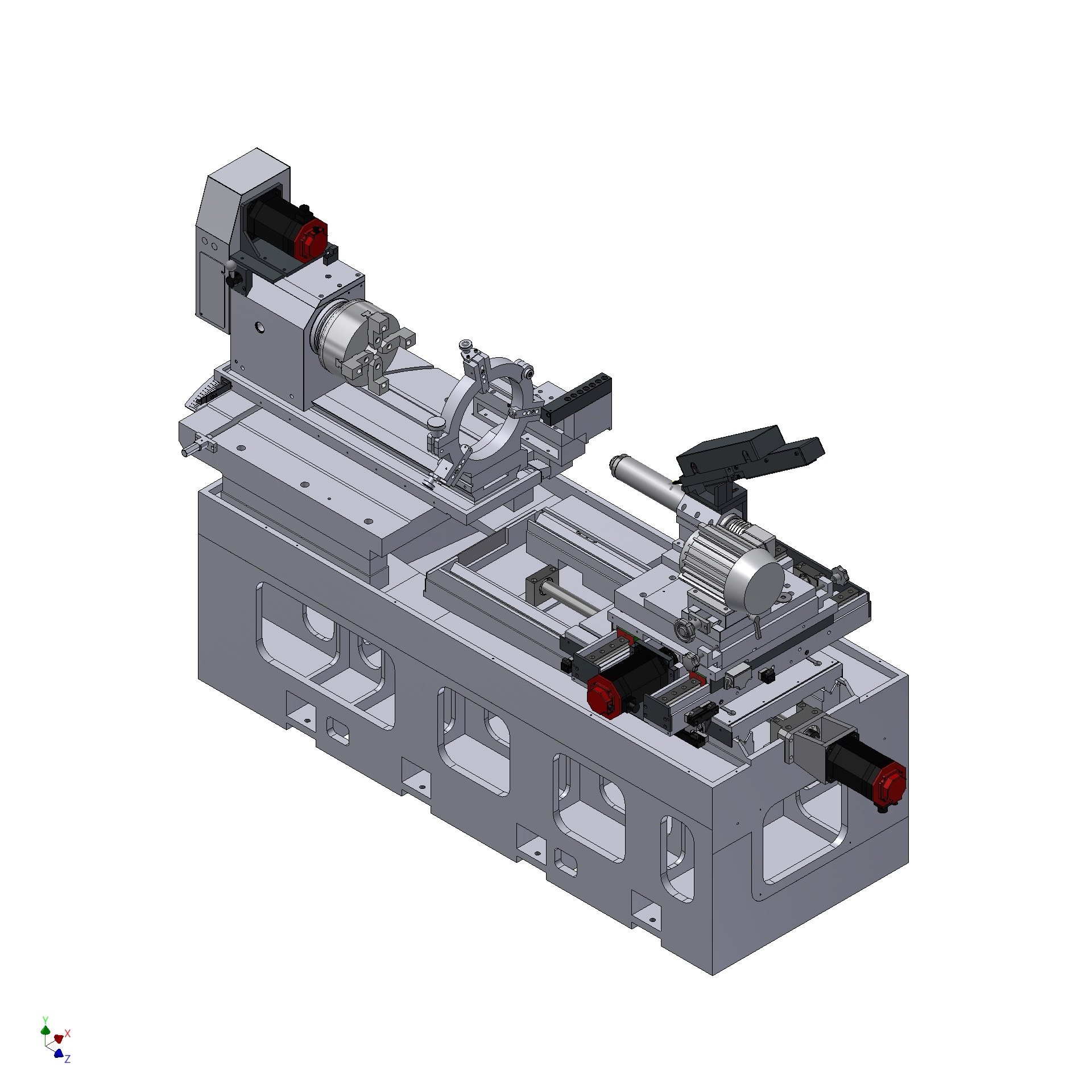

POWERFUL CNC INTERNAL GRINDER

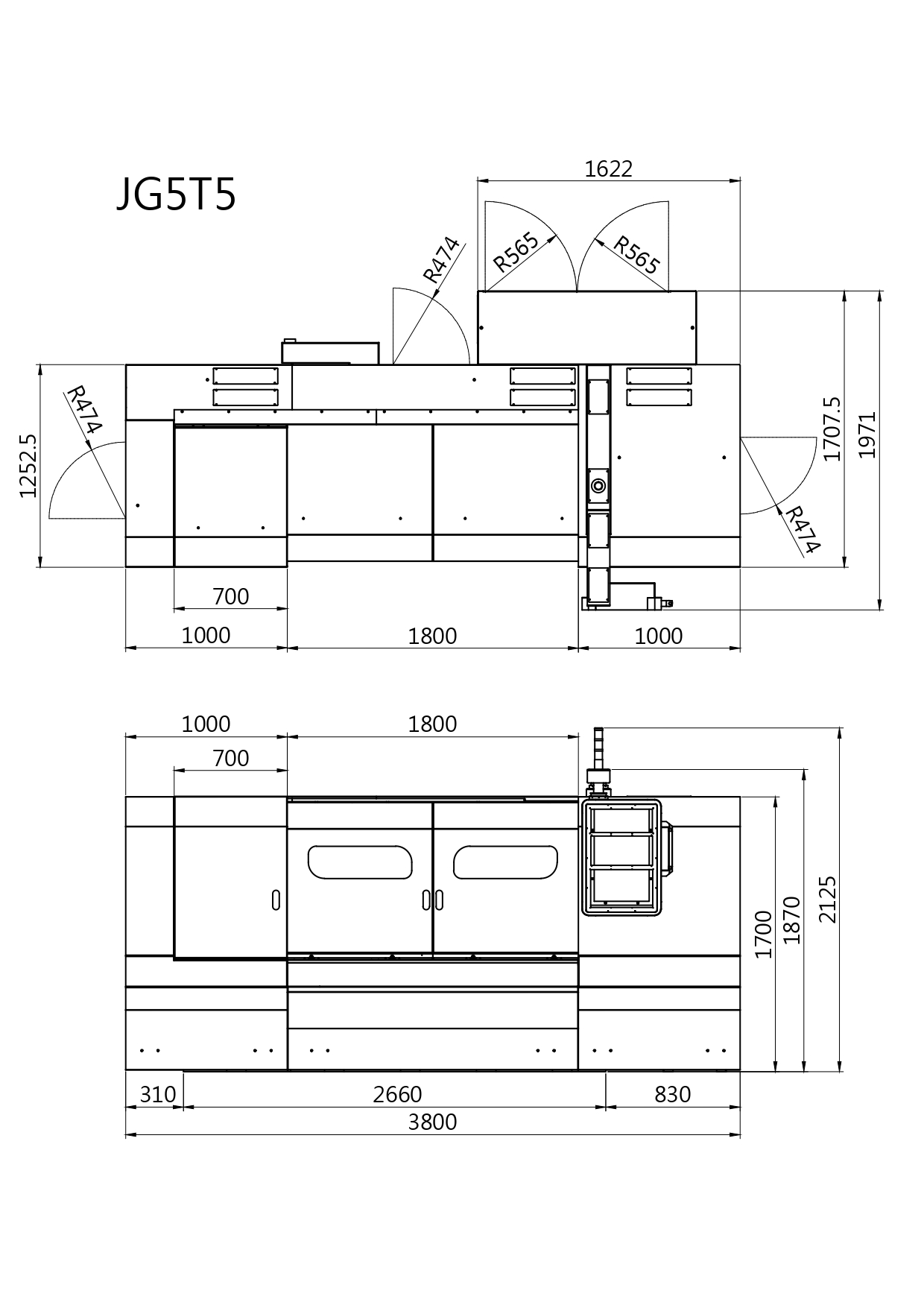

| JG5-T5 TECHNICAL DATA | |
|---|---|
| MAIN DIMENSIONS | |
| SWING DIAMETER OVER THE TABLE | 360 mm |
| MAX. WORKPIECE LENGTH | 500 mm |
| MAX. WORKPIECE WEIGHT | 90 kg |
| MAX. WORKPIECE OUTSIDE DIAMETER RANGE | Ø 350 mm |
| INTERNAL GRINDING LENGTH | max. 350 mm |
| INTERNAL DIAMETER GRINDING RANGE | Ø 20 - Ø 250 mm |
| MAX. STEADY REST DIAMETER | Ø 250 mm |
| MACHINE DIMENSION (L x W x H) | 3200 x 2250 x 2268 mm |
| TOTAL WEIGHT | 4200 kg |
| LONGITUDINAL AXIS X | |
| MAX. TRAVEL | 260 mm |
| SPEED | 5000 mm/min |
| RESOLUTION | 0.001 mm |
| TRANSVERSE AXIS Z | |
| MAX. TRAVEL | 500mm |
| SPEED | 5000 mm/min |
| RESOLUTION | 0.001 mm |
| INTERNAL GRINDING | |
| INTERNAL GRINDING WHEEL | max. Ø 100 mm |
| SPEED | 10000 rpm (STD) |
| DRIVING POWER | 3 hp |
| DRIVING POWER | |
| AXIS X | Servo Motor 1.8 kw |
| AXIS Z | Servo Motor 1.8 kw |
| HYDRAULIC PUMP (optional) | 1 hp |
| CHUCK WORKHEAD | |
| RPM RANGE | 1 – 900 rpm |
| INNER HOLE TAPER | MT.5 |
| THROUGH SPINDLE HOLE DIAMETER | Ø 32 |
| DRIVING POWER | 2 kw |
| 3-JAW POWER CHUCK | Manual 9" |
| ROUNDNESS ACCURACY DURING LIVE SPINDLE GRINDING | 0.001 mm |
| TABLE SWIVELING RANGE (manual) | +10°~ -5° |
| CONTROL SYSTEM | |
| Computer：FANUC 0i – TF PLUS | Software：JIMATIC – F9000 |
| Computer：SYNTEC 22MA | Software：JIMATIC – S9000 |
| SWIVELING TABLE (optional) | |
| SWIVELING RANGE, CONTINUOUSLY ADJUSTABLE | +10°~ -5° |
| REPETITION ACCURACY | <1" |
| SWIVELING TIME FOR 15 DEG | <6s |
| GRINDING SPINDLE TURRET (optional) | |
| SPINDLE SET-UP | Turret |
| MAX. NUMBER OF SPINDLES | 2 (4) |
| SWIVELING RANGE | -50°~ 280° |
| REPETITION ACCURACY | <1" |
| SWIVELING TIME FOR 180 DEG | <5s |
| C-AXIS FOR FORM GRINDING (optional) | |
| HIGH-PRECISION, DIRECT MEASURING SYSTEM | 0.001° |
| DRIVING POWER | Servo Motor 1.8 kw |
