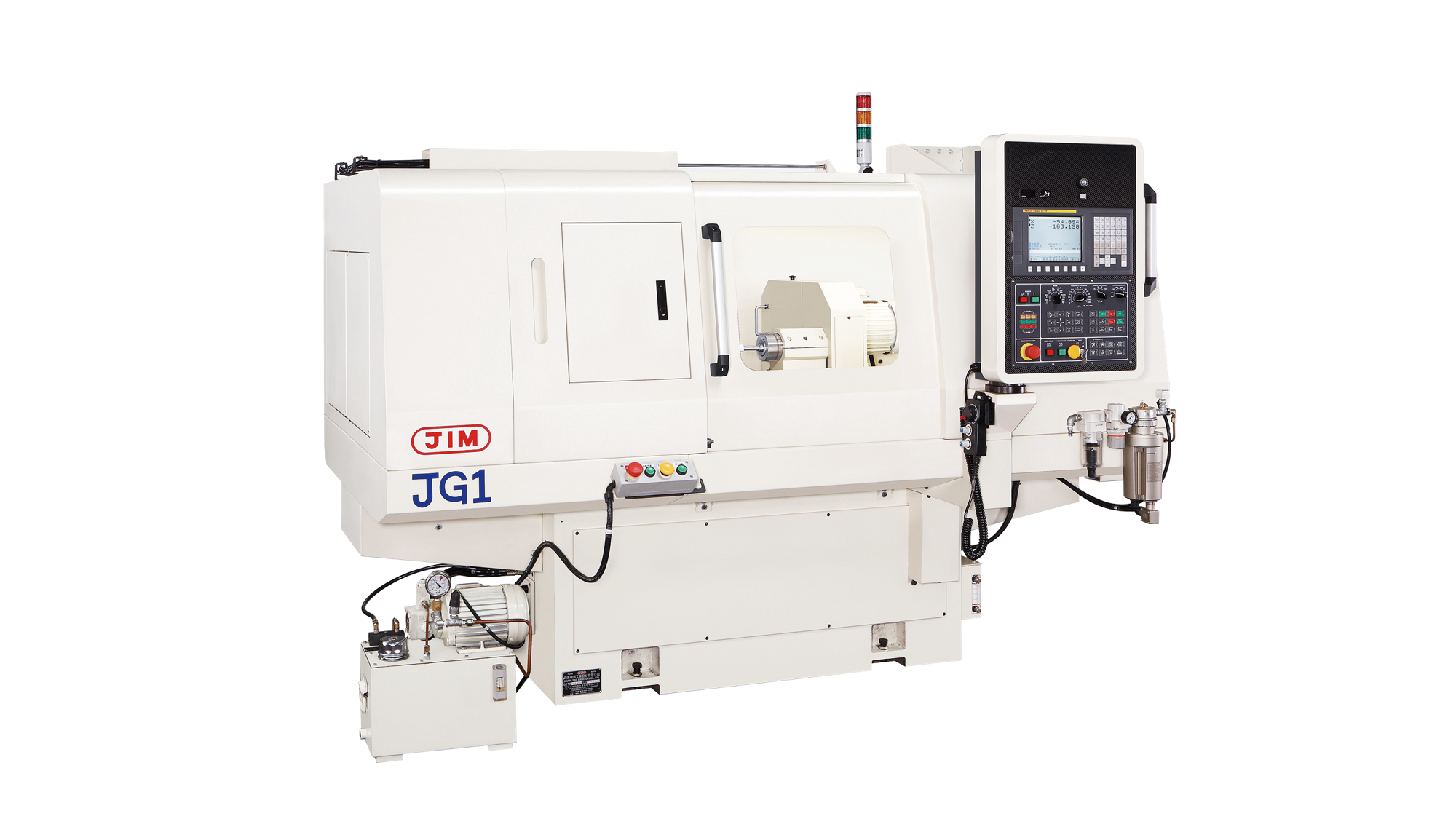

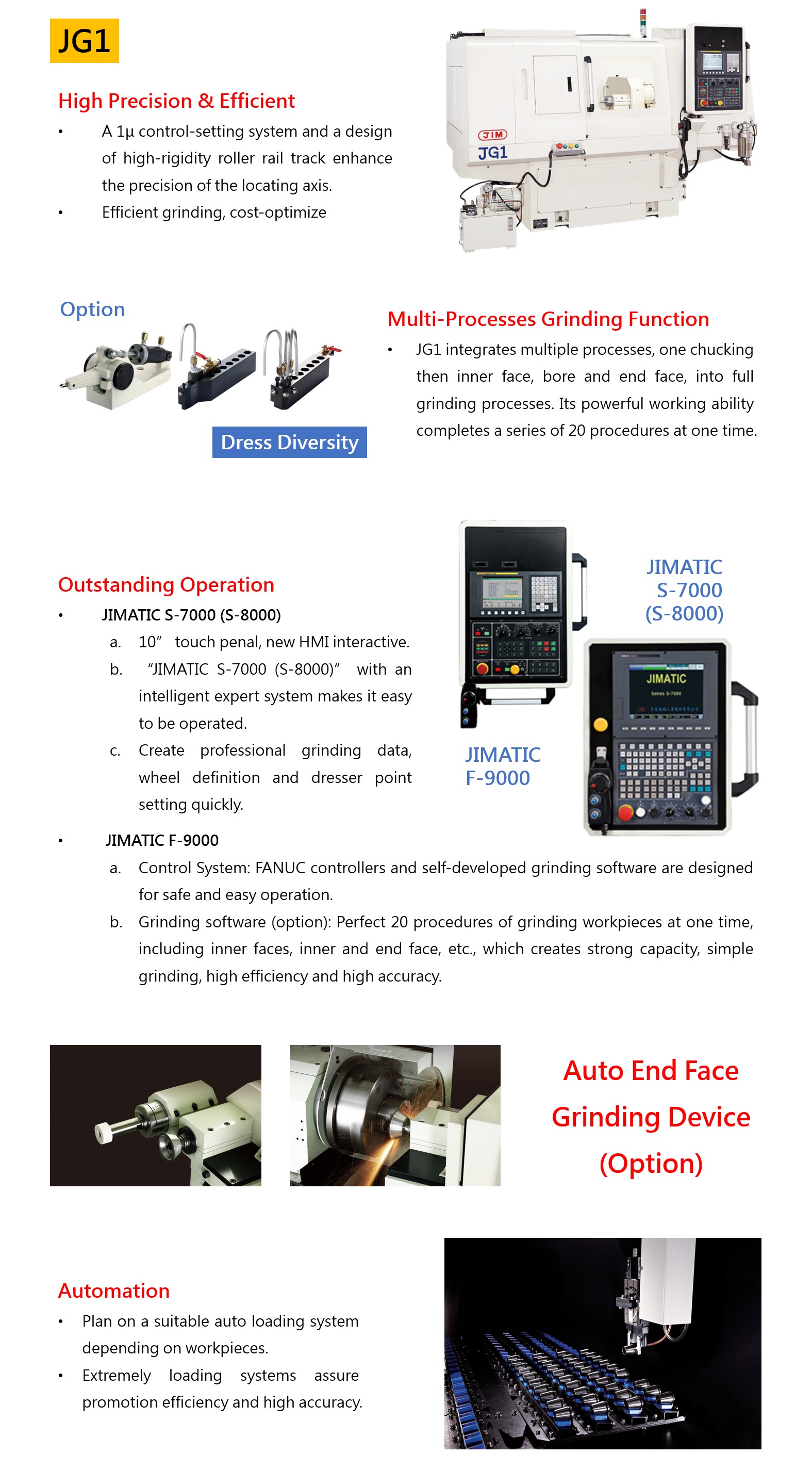

CNC INTERNAL GRINDER
|
JG1 TECHNICAL DATA |
|
|---|---|
| MAIN DIMENSIONS | |
| SWING DIAMETER OVER THE TABLE | 400 mm |
| MAX. WORKPIECE LENGTH | 180 mm |
| MAX. WORKPIECE WEIGHT | 60 kg |
| MAX. WORKPIECE OUTSIDE DIAMETER RANGE | Ø 300 mm |
| INTERNAL GRINDING LENGTH | max. 150 mm |
| INTERNAL DIAMETER GRINDING RANGE | Ø 6 - Ø 150 mm |
| MACHINE DIMENSION (L x W x H) | 2400 x 1693.5 x 1975 mm |
| TOTAL WEIGHT | 1800 kg |
| LONGITUDINAL AXIS X | |
| MAX. TRAVEL | 200 mm |
| SPEED | 5000 mm/min |
| RESOLUTION | 0.001 mm |
| TRANSVERSE AXIS Z | |
| MAX. TRAVEL | 250 mm |
| SPEED | 5000 mm/min |
| RESOLUTION | 0.001 mm |
| INTERNAL GRINDING | |
| INTERNAL GRINDING WHEEL | Ø 90 or Ø 120 mm |
| SPEED | 10000 rpm (STD) |
| DRIVING POWER | 3 hp |
| DRIVING POWER | |
| AXIS X | Servo Motor 1.8 kw |
| AXIS Z | Servo Motor 1.8 kw |
| HYDRAULIC PUMP (optional) | 1 hp |
| CHUCK WORKHEAD | |
| RPM RANGE | 1 – 900 rpm |
| INNER HOLE TAPER | MT.5 |
| THROUGH SPINDLE HOLE DIAMETER | Ø 32 |
| DRIVING POWER | 1/2 hp x 6 p |
| 3-JAW POWER CHUCK | manual 9" |
| ROUNDNESS ACCURACY DURING LIVE SPINDLE GRINDING | 0.002 mm |
| TABLE SWIVELING RANGE | +25°~-5° |
| COOLANT TANK | |
| COOLANT PUMP | 1/4 hp |
| CAPACITY | 75 L |
| MAX. FLOW | 40 L/min |
| CONTROL SYSTEM | |
| Computer：FANUC 0i – TF PLUS | Software：JIMATIC – F9000 |
| Computer：SYNTEC 22MA | Software：JIMATIC – S9000 |
| Computer：SYNTEC HC – 10 | Software：JIMATIC – S8000 |
