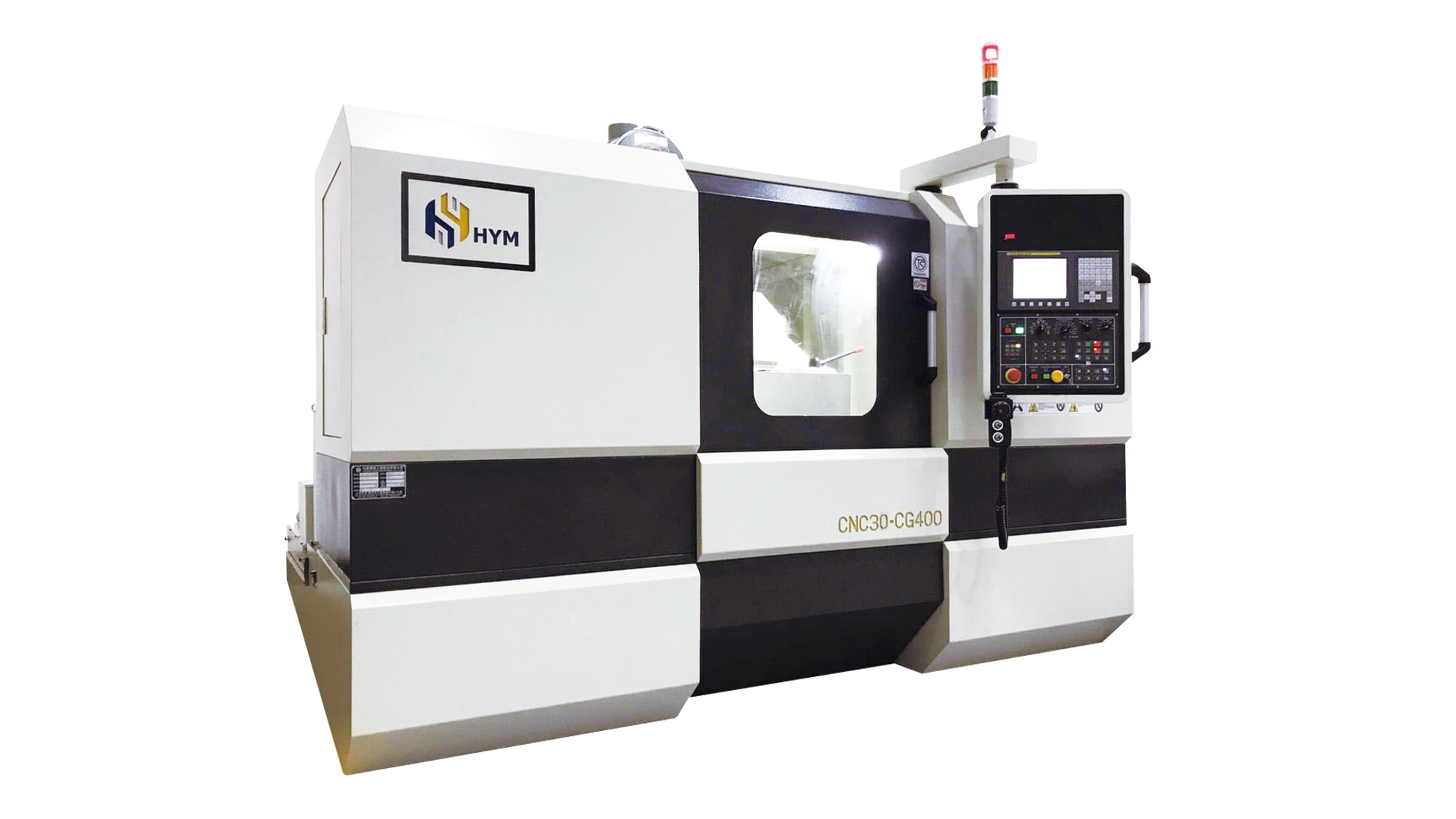

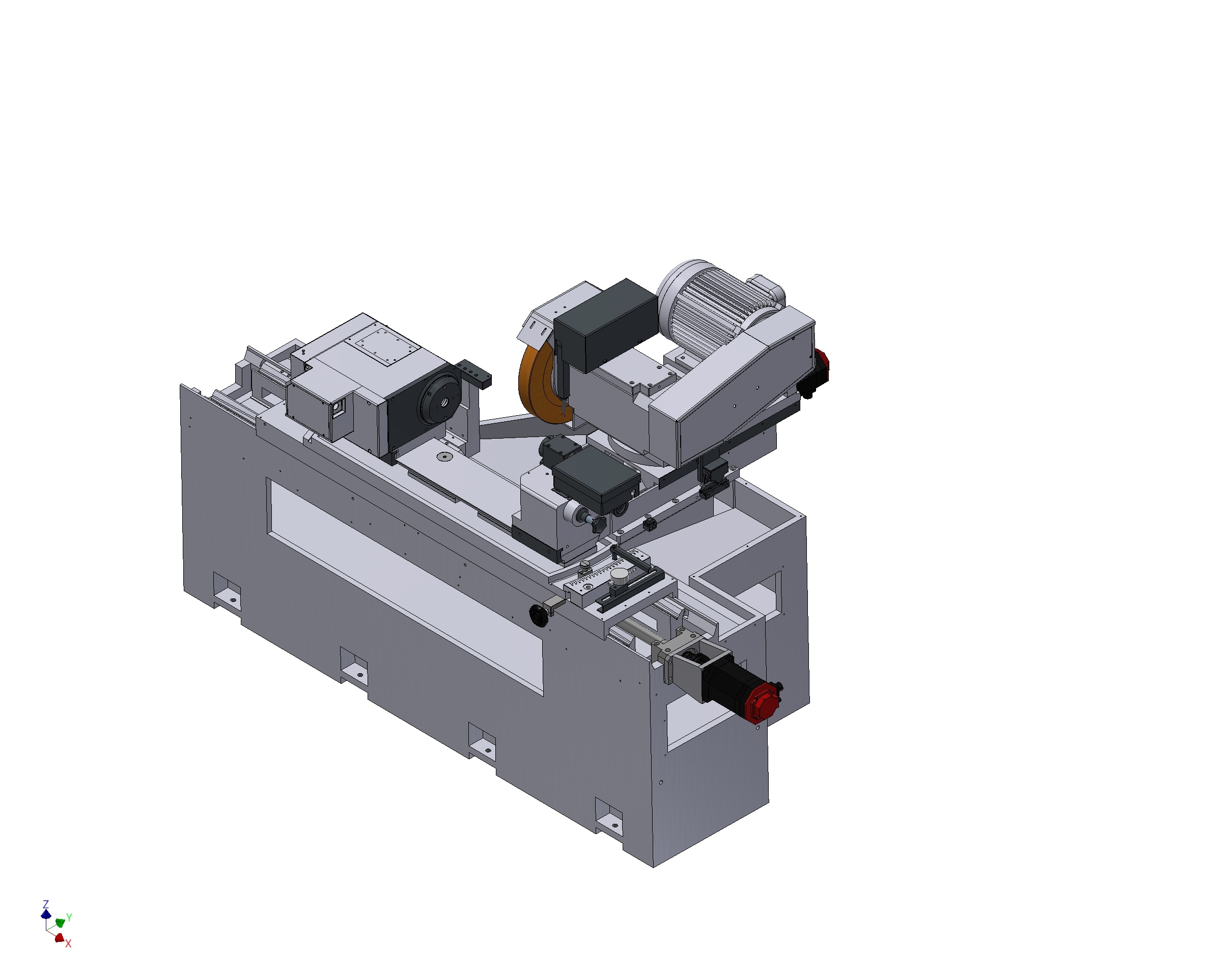

CNC PRECISION CYLINDRICAL GRINDER
| CNC30-CG400 TECHNICAL DATA | |
|---|---|
| MAIN DIMENSIONS | |
| SWING DIAMETER OVER THE TABLE | 306 mm |
| MAX. WORKPIECE LENGTH | 400 mm |
| MAX. WORKPIECE WEIGHT | 80 kg |
| MAX. WORKPIECE OUTSIDE DIAMETER RANGE | Ø 300 mm |
| EXTERNAL GRINDING LENGTH | max. 400 mm |
| EXTERNAL DIAMETER GRINDING RANGE | max. Ø 300 mm |
| CENTER HEIGHT | 153 mm |
| MACHINE DIMENSION (L X W X H) | 2945 x 2310 x 2278 mm |
| TOTAL WEIGHT | 3000 kg |
| LONGITUDINAL AXIS X | |
| MAX. TRAVEL | 270 mm |
| SPEED | 5000 mm/min |
| RESOLUTION | 0.001 mm |
| TRANSVERSE AXIS Z | |
| MAX. TRAVEL | 520 mm |
| SPEED | 5000 mm/min |
| RESOLUTION | 0.001 mm |
| GRINDING WHEEL | |
| EXTERNAL GRINDING | 405 mm |
| PERIPHERAL SPEED | 45 m/s |
| FITTING TAPER | 1 : 10 / 40 mm (ISO 40) |
| GRINDING WHEEL | dia. 405 / 127 x 50 mm, dia. 405 / 152.4 x 50 mm |
| SPINDLE SPEED | 1800 rpm |
| DRIVING POWER | 7.5 hp |
| DRIVING POWER | |
| AXIS X | 1.8 kw |
| AXIS Z | 1.8 kw |
| HYDRAULIC PUMP | 1 hp |
| WHEEL LUBRICATION PUMP MOTOR | 1 hp |
| WORKHEAD SPINDLE | |
| RPM RANGE | 1 – 900 rpm |
| INNER HOLE TAPER | MT.4 |
| THROUGH SPINDLE HOLE DIAMETER | Ø 20 |
| WORK SPINDLE | 0.75 kw |
| TAILSTOCK | |
| FITTING TAPER | MT.4 |
| BARREL STROKE | 40 mm |
| HYDRAULIC TAILSTOCK (optional) | - |
| CONTROLLER | |
| Computer：FANUC 0i – TF PLUS | Software：JIMATIC – F9000 |
| Computer：SYNTEC 22MA | Software：JIMATIC – S9000 |
